DVR2™

Price range: £58.95 through £72.95

  • The DVR2P/N suitable for Lucas/Miller Dynamos fitted to most British Motorcycles £58.95
  • The DVR2B suitable for Motorcycles equipped with Bosch Type Generators fitted to many European Motorcycles £72.95

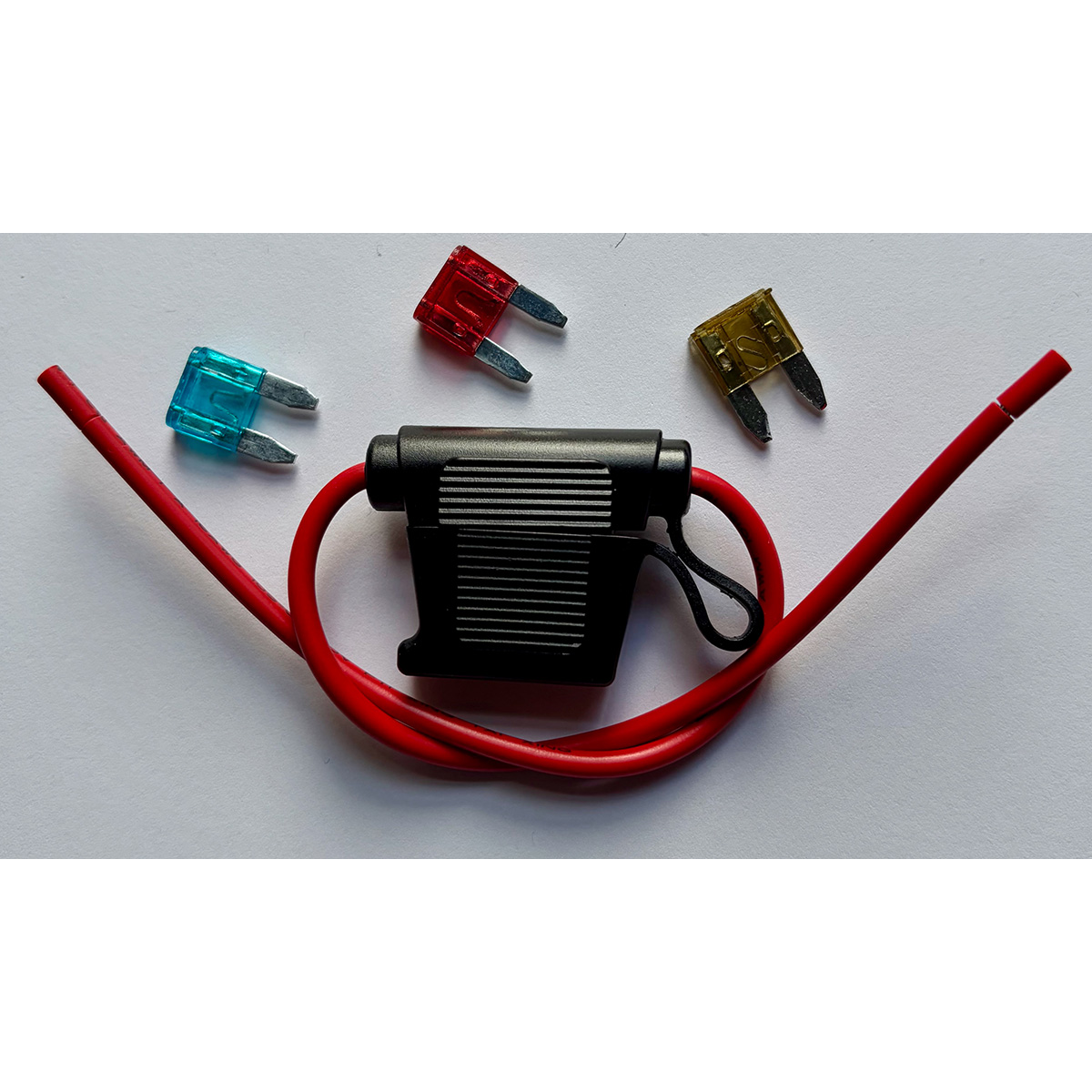

In-Line fuse & Holder We strongly recommend fitting a fuse with a DVR2, if not already present. This is a neat and tough fuse-holder to do the job (it can be optionally added to the order).
Please note the following Shipping Charges:
  • UK – £4.95
  • Europe – £13
  • Rest of World – £15.50
Fuse Holder

The DVR2™ regulator is the well known and well regarded solid state dynamo voltage regulator from Dynamo Regulators Ltd. The DVR2 is primarily suited to classic motorcycle fitment being a modern electronic ‘solid state’ replacement for the original electromechanical ‘CVC’ regulator units on Classic Motorcycles equipped with dynamo electrical generation. For example, the DVR2P/N is suited to duty on practically all dynamo equipped (Lucas or Miller 2 brush) British motorcycles from the 1930’s through to the 1960’s.
The DVR2B is suited to Motorcycles equipped with a Bosch type Generator fitted to most European Motorcycles up to and including the 1970’s

Whilst the DVR2™ is similar in cost to some other regulators, its performance and reliability are superior to these competitors. With the DVR2™ there is no battery discharge into the field winding at low revs. Battery voltage is stable (above cut in speed) regardless of your speed. Your dynamo will start up (and be regulated!) with no or very low battery. (Often the case with motorcycles laid up for long periods).

Ultimately, the DVR2™ promotes better lights & properly charged batteries..

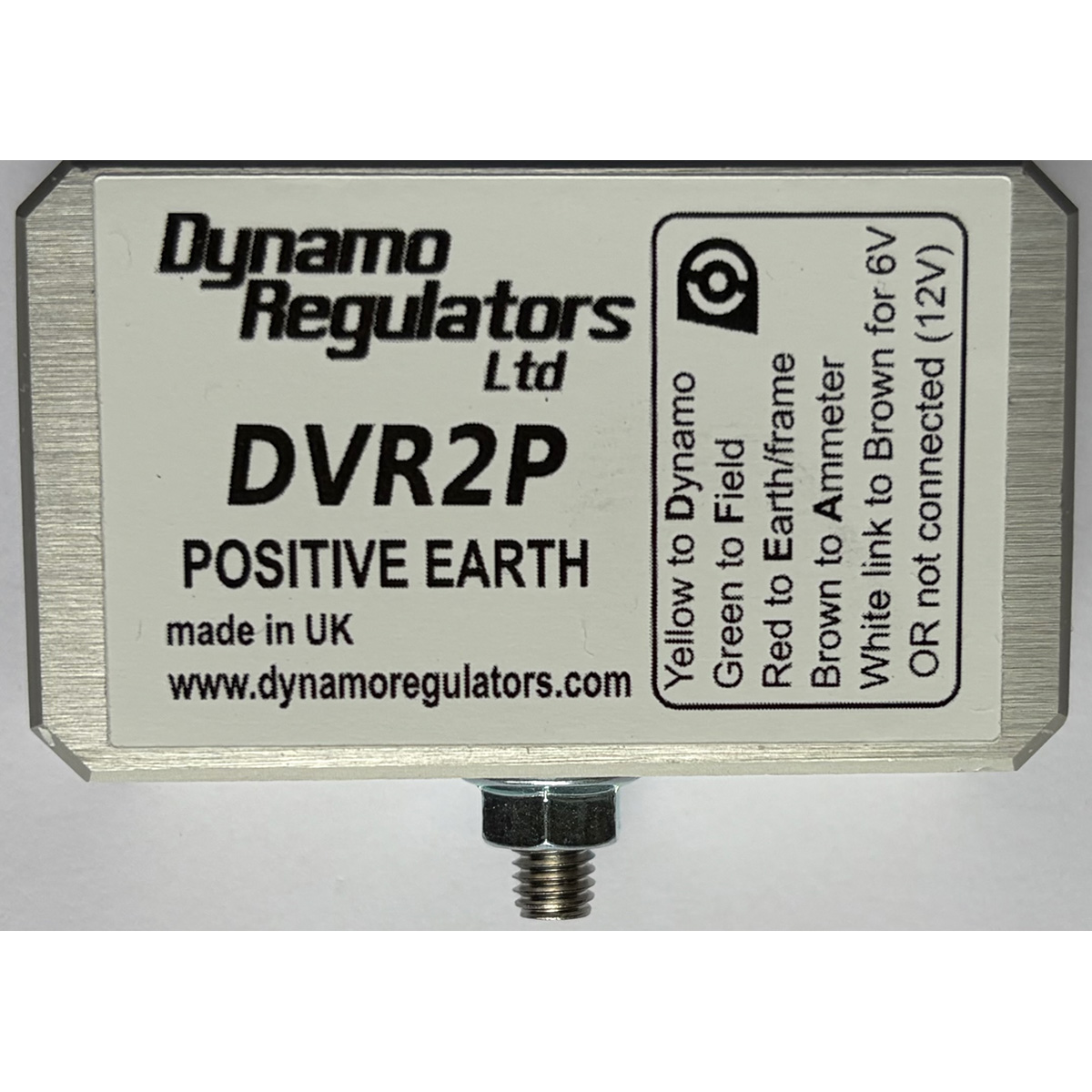

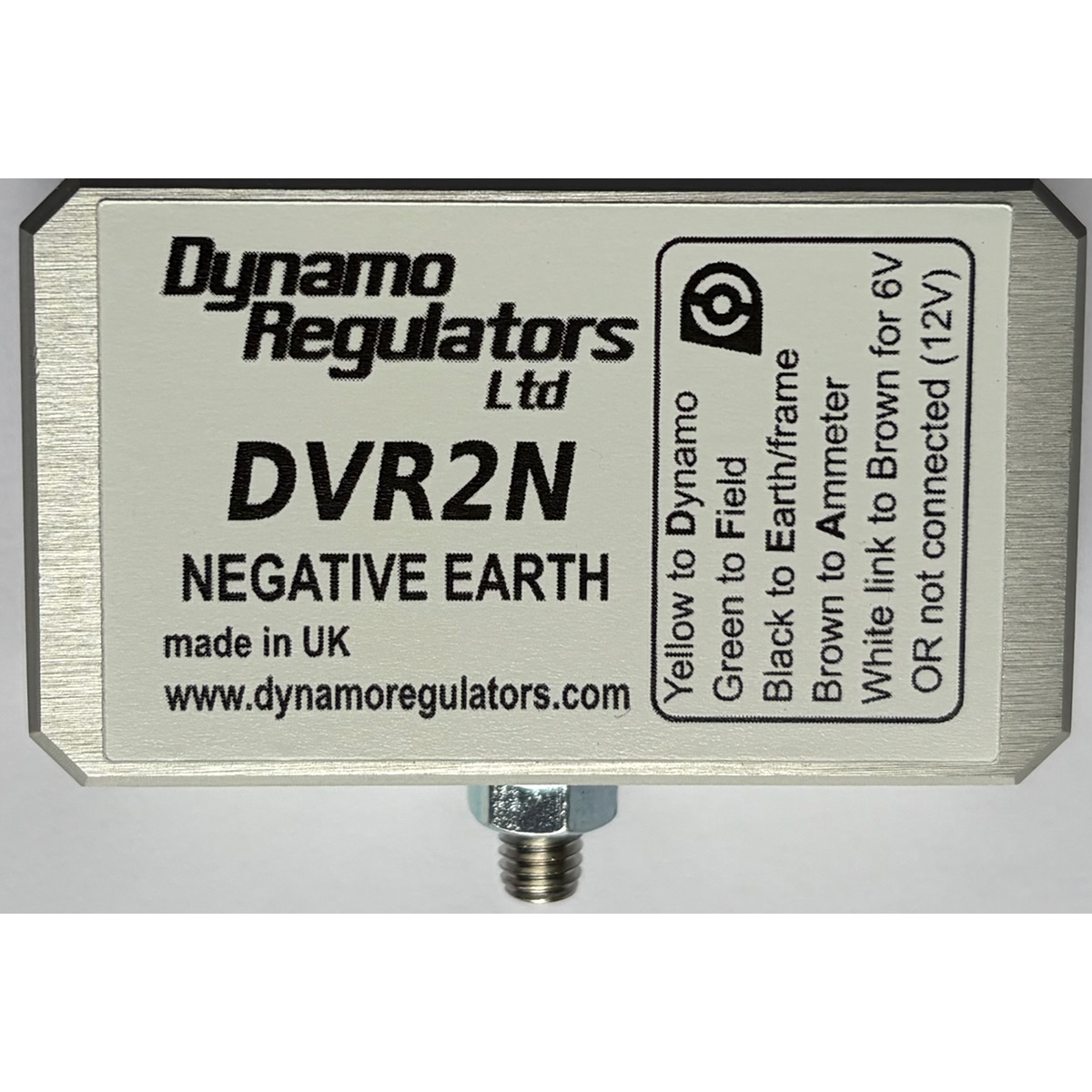

DVR2P/N
6 or 12 Volt selectable – change voltage at any time
Positive & Negative earth versions
Zero Battery discharge at Low Revs.(Field powered by Dynamo output) for high efficiency.
Minimum Field Resistance 2.8 Ohms
Use with Lucas or Miller and other (Field wired to earth) dynamos (view Miller DVR modification for use with DVR2)
Fits comfortably in Lucas or Miller case or mount on its own with single M5 stud
Size – 56mm x 33mm x 18mm.
Fitted with 1 mm sq, 3 mm outside diameter leads
Maximum Output 100W

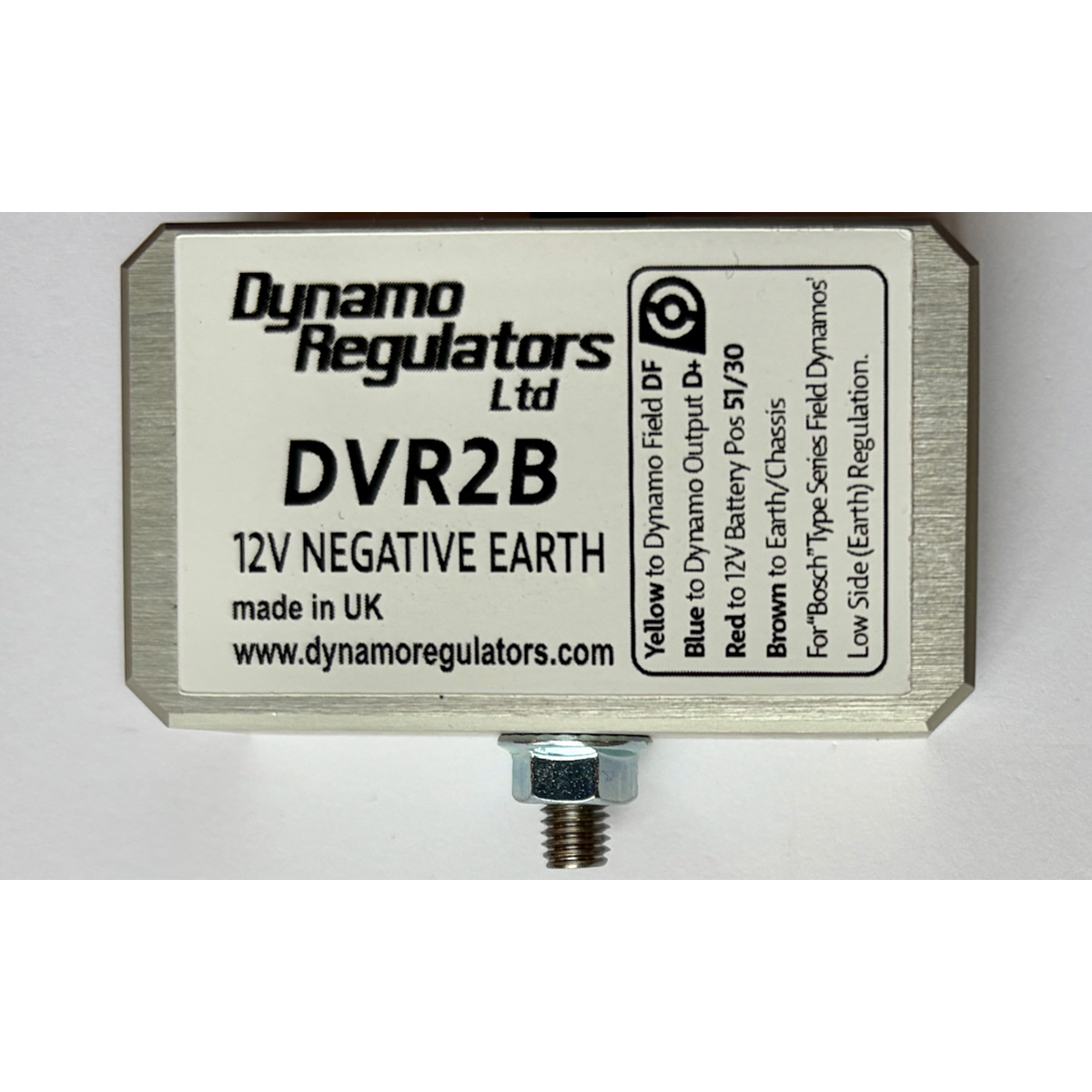

DVR2B
12V Negative earth operation only.
Use with Bosch type generator/dynamos with type A series field connections.
Zero Battery discharge at Low Revs.(Field powered by Dynamo output) for high efficiency.
Minimum Field Resistance 3 ohms Typical 5-6 ohms.
Size – 56mm x 33mm x 18mm.
Fitted with 1 mm sq, 3 mm outside diameter leads
Maximum Output 100W Internally protected against output short circuit.

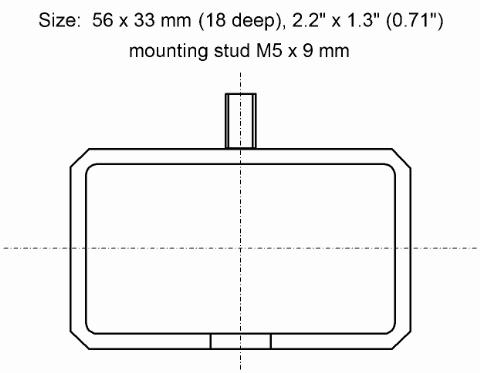

DVR2 case
The DVR2™ employs a tough aluminium alloy case measuring 56x33x18mm for excellent heat transfer and robustness
meaning reliable, cool running & efficient. More light….. Less heat. Mounting is via a M5 single stud.
